Infra Red Elevator Door Detector THY-LC-917
| Product Name | Elevator light curtain |
| Open way | Side rakavhurika kana pakati rakavhurika |
| Voltage | AC220V,AC110V,DC24V |
| Nhamba yeDiodes | 17, 32 |
| Nhamba yeBeam | 94-33Beams,154-94Beams |
1. Nekuzviongorora basa, bhokisi reSimba remagetsi rinowanzobuda uye kuzviongorora-kubuda
2. Yakapfuura Germany TUV bvunzo, uye kutevedzera zvinoenderana nedzimwe nyika
3. Dormancy basa, kuwedzera hupenyu hwekushanda kwechigadzirwa
4. Gamuchira tekinoroji nyowani, PCB ine simba rakasimba rekudzivirira ngura, uye kugona kwakasimba kwekugadzirisa munda, yakagadzikana uye yakavimbika.
5. Yakanaka chitarisiko dhizaini, nyore kuisirwa, yakakodzera kune akawanda brand elevators
6. Advanced technics uye equipments, yakavimbika SMT pamusoro padding unyanzvi
7. Optional kuti vashandisi vasarudze NPN/PNP yakabuda (Transistor output) pasina magetsi bhokisi
Elevator mwenje keteni ndeye elevator kuchengetedza kuchengetedza mudziyo wakagadzirwa uchishandisa musimboti we photoelectric induction. Yakakodzera kune ese maelevator uye inodzivirira kuchengetedzeka kwevafambi vanopinda nekubuda muelevator. Chidzitiro chemwenje cheelevator chinoumbwa nezvikamu zvitatu: infrared transmitters uye vanogamuchira akaiswa pamativi ese emusuwo wemota yekusimudza, uye tambo dzinochinjika. Nezve zvinodiwa zvekuchengetedzwa kwezvakatipoteredza uye kuchengetedza simba, akawanda uye akawanda elevator akasiya bhokisi remagetsi. Mamwe mabhureki emaketeni akareruka anofanirwa kushandisa mabhokisi emagetsi nekuda kwekusadzivirira kwavo kukanganiswa kwemagetsi. Nekudaro, nekuzivikanwa kweiyo pfungwa yegirinhi elevator, machira emwenje asina mabhokisi emagetsi emagetsi maitiro. Nekuti maitiro ekushandura 220V kuenda ku24V anosungirwa kurasikirwa nesimba rakawanda.
Iyo THY-LC-917 mwenje keteni yakashongedzerwa neCPU-inodzorwa dynamic scanning LED mwenje-emitting chubhu payakajairwa mwenje keteni. Iyo bhandi-yakaumbwa maviri-mavara LED inoratidza mamiriro enzvimbo yechiedza chekudzivirira machira, kuitira kuti keteni remwenje rive nekuwedzera kutaridzika kwemaitiro pane yakajairika kuchengetedza basa. Hunhu huzhinji.
Kune akati wandei infrared emitting machubhu mumagumo ekubuda kweketeni rechiedza. Pasi pekutonga kweMCU, machubhu ekuburitsa nekugamuchira anobatidzwa munhevedzano, uye mwenje unoburitswa nemusoro unoburitsa unogamuchirwa nemisoro yakawanda inogashira kuti iite yakawanda-channel scan. Kuburikidza nekuenderera mberi nekutarisisa kwenzvimbo yemusuwo wemota kubva kumusoro kusvika pasi, dense infrared dziviriro keteni remwenje rinoumbwa. Kana chero imwe yemwaranzi yakavharwa, sezvo shanduko yephotoelectric isingagone kuitika, keteni remwenje rinoona kuti pane kuvharika, uye nekudaro rinoburitsa chiratidzo chekuvhiringidza. Ichi chinovhiringidza chiratidzo chinogona kunge chiri chiratidzo chekuchinja kana chepamusoro uye chakaderera chiyero chiratidzo. Mushure mekunge hurongwa hwekutonga huchigamuchira chiratidzo kubva pachidzitiro chechiedza, inobva yabudisa chiratidzo chekuzarura gonhi, uye gonhi remotokari rinomira kuvhara uye rinovhura kumashure. Gonhi rerevheta rinogona kuvharwa zvakajairika mushure mekunge vafambi kana zvipingamupinyi zvabva panzvimbo yambiro, kuitira kuti uwane chinangwa chekuchengetedza kuchengetedza. Dzivisa tsaona dzevanhu vanobatwa muma lifti.
1. Kuiswa kwenhare ye transmitter uye inogamuchira
Kuiswa kwenhare kweketeni remwenje kunoreva kuisirwa uye kushandiswa kwemwenje mwenje wekutapurirana, inogamuchira, kana imwe yacho inomiswa pamusuwo wemotokari uye inofamba nemusuwo wemota. Mumamiriro ezvinhu akajairwa, iyo transmitter uye inogamuchira yakagadzikwa pamupendero wekupeta wegonhi remotokari.
Nzira yekuisa gonhi repadivi ndeyekugadzirisa keteni rechiedza pamotokari yekusimudza uye kupeta kumucheto kwegonhi remotokari nemasikiru.
Iyo yekumisikidza nzira yepakati kupatsanurwa gonhi ndeyekugadzirisa mwenje keteni pamupendero wekupeta wegonhi remota yekusimudza ine screws.

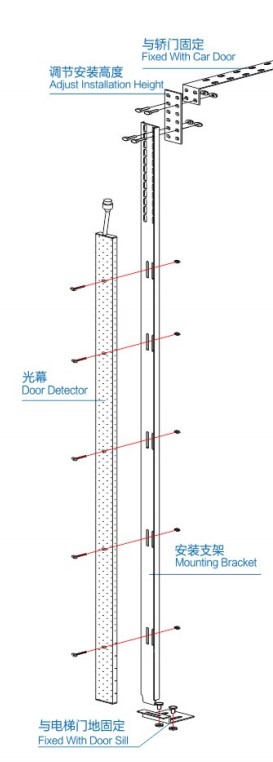

2. Yakagadziriswa kuisirwa kwetransmitter uye inogamuchira
Kuiswa kwakagadzika kwechidzitiro chemwenje kunoreva kuiswa uye kushandiswa kwemwenje yemwenje yekutapurirana uye inogamuchira yakagadzikwa kumagumo emusuwo wemotokari sill kuburikidza neyakagadzika bracket. Iyo transmitter uye inogamuchira haigone kufamba nemusuwo wemota.
